R65 (2472) | Rear Axle & Suspension

CROWNGEAR AND SPACER RINGS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

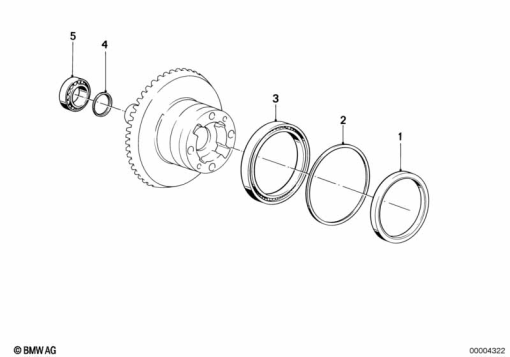

Diagram #33_1573 | 22 parts

100%

Parts List (22)

#	Part Number	Description	Qty
1	33 12 1 241 938	SHAFT SEAL - 85X110X10	-
2	33 12 2 310 549	SHIM - 0,500MM	-
3	33 12 1 242 211	GROOVED BALL BEARING - 85X120X18	-
4	33 12 1 450 082	SHIM - 2,200MM	-
	33 12 1 450 083	SHIM - 2,250MMAlternative for position 4	-
	33 12 1 450 084	SHIM - 2,300MMAlternative for position 4	-
	33 12 1 450 085	SHIM - 2,350MMAlternative for position 4	-
	33 12 1 450 086	SHIM - 2,400MMAlternative for position 4	-
	33 12 1 450 087	SHIM - 2,450MMAlternative for position 4	-
	33 12 1 450 088	SHIM - 2,500MMAlternative for position 4	-
	33 12 1 450 089	SHIM - 2,550MMAlternative for position 4	-
	33 12 1 450 090	SHIM - 2,600MMAlternative for position 4	-
	33 12 1 450 091	SHIM - 2,650MMAlternative for position 4	-
	33 12 1 450 092	SHIM - 2,700MMAlternative for position 4	-
	33 12 1 450 093	SHIM - 2,750MMAlternative for position 4	-
	33 12 1 450 094	SHIM - 2,800MMAlternative for position 4	-
	33 12 1 454 403	SHIM - 1,950MMAlternative for position 4	-
	33 12 1 454 404	SHIM - 2,000MMAlternative for position 4	-
	33 12 1 454 405	SHIM - 2,050MMAlternative for position 4	-
	33 12 1 454 406	SHIM - 2,100MMAlternative for position 4	-
	33 12 1 454 407	SHIM - 2,150MMAlternative for position 4	-
5	33 12 1 452 216	TAPERED ROLLER BEARING - 25X47X15	-
