Parts List (34)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 12 1 243 748 | IGNITION WIRE - VOLLENTSTOERT | - | |
| 3 | 07 11 9 936 134 | TOOTH WASHER - J6,4 | - | |
| 4 | 65 31 1 355 502 | SUPPRESSION CAPACITOR | - | |
| 5 | 07 11 9 907 646 | FILLISTER HEAD SCREW - M6X10 | - | |
| 6 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 6 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 6 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 6 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 6 | - | ||
| 7 | 65 31 1 244 459 | EARTH STRAP | - | |
| 8 | 61 13 1 354 359 | BUSH | - | |
| 9 | 07 11 9 904 509 | FILLISTER-HEAD SCREW - M6X60-8.8-ZNS3 | - | |
| 10 | 07 11 9 932 0701 | SS 6MM WASHER | - | |
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 10 | - | ||
07 11 9 932 073 | SPRING WASHER BLACK - B6-ZNAlternative for position 10 | - | ||
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 10 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 10 | - | ||
| 11 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
07 11 9 901 438.1 | M6X16 SS ALLEN BOLTAlternative for position 11 | - | ||
| 12 | 65 31 1 244 459 | EARTH STRAP | - | |
| 13 | 65 31 1 244 274 | WIRING FULL SUPPRESSING - ZUENDUNG | - | |
| 14 | 65 31 1 243 826 | CONTACT SPRING | - | |
| 15 | 65 31 1 244 327 | COVERING CAP | - | |
| 16 | 07 12 9 952 104 | HOSE CLAMP - L12-15 | - | |
| 17 | 65 31 1 353 087 | SUPPRESSION CAPACITOR | - | |
| 18 | 65 31 1 244 339 | COVER (to 12/90) | - | |
| 19 | 07 11 9 904 170 | SCREW | - | |
| 20 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 20 | - | ||
| 21 | 07 11 9 906 822 | FILLISTER HEAD SCREW - M5X8-Z3 | - | |
| 22 | 65 31 1 244 017 | SLEEVE | - | |
| 23 | 07 12 9 903 804 | ISA SCREW - M6X10-8.8-ZNS3 | - | |
| 24 | 07 11 9 936 133 | TOOTH WASHER - A6,4 | - | |
| 25 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI | - |

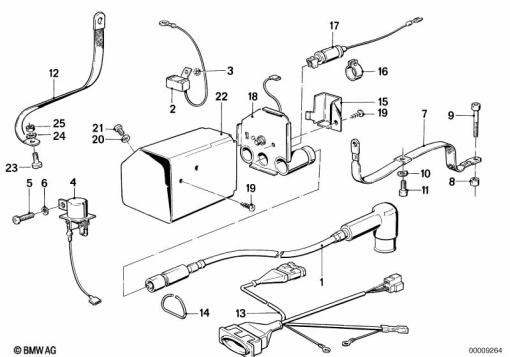

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
