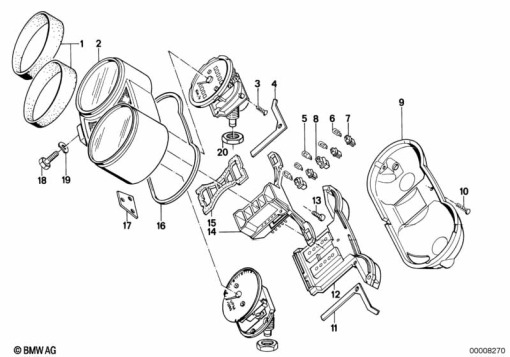

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 1 356 676 | SUPPORTING RING | - | |
| - | 62 11 1 244 769 | SCREW - 3X16 | - | |
| 2 | 62 11 1 244 779 | HOUSING | - | |
| - | 62 11 1 244 769 | SCREW - 3X16 | - | |
| 3 | 07 11 9 902 578 | RECESSED OVAL HEAD SHEET-METAL SCREW - ST3,5X13 | - | |
| 4 | 62 11 1 358 114 | GASKET | - | |
| 6 | 63 21 7 167 000 | BULB - 12V 1,2W | - | |
| 7 | 62 11 1 244 643 | BULB SOCKET | - | |
| 8 | 62 11 1 356 714 | BULB SOCKET | - | |
| 9 | 62 11 1 356 674 | COVER | - | |
| 10 | 07 11 9 902 412 | RECESSED OVAL HEAD SHEET-METAL SCREW - ST2,9X13 | - | |
| 11 | 62 11 1 358 114 | GASKET | - | |
| 12 | 62 11 1 243 438 | COVER LID | - | |
| 13 | 07 11 9 919 313 | FILLISTER-HEAD SCREW - M3X8 | - | |
62 11 1 244 769 | SCREW - 3X16Alternative for position 13 | - | ||
| - | 62 11 1 244 779 | HOUSING | - | |
| 14 | 62 11 1 244 129 | BULB SOCKET | - | |
| 15 | 62 11 1 356 669 | GASKET | - | |
| 16 | 62 11 1 356 671 | GASKET RING | - | |
| 17 | 62 11 1 356 672 | MOUNTING PLATE | - | |
| 18 | 07 11 9 904 527 | HEX BOLT WITH WASHER - M6X20 | - | |
| 19 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 19 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 19 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 19 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 19 | - | ||
| 20 | 62 11 1 243 111 | HEX NUT - M18X1 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
