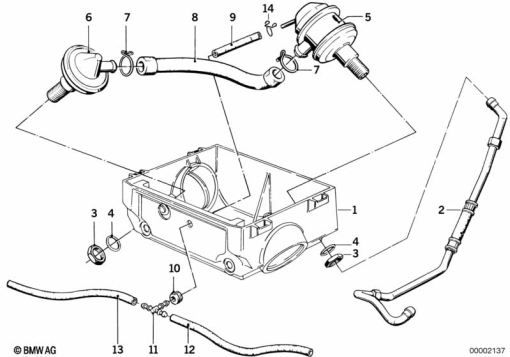

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 72 1 337 188 | AIR CLEANER HOUSING BOTTOM - "SLS" | 1 | |
| 2 | 11 71 1 337 167 | INTAKE MANIFOLD LEFT | 1 | |
| 2 | 11 71 1 337 168 | INTAKE MANIFOLD RIGHT | 1 | |
| 3 | 07 11 9 901 307 | HEX NUT - M16X1,5-04-ZNS | 1 | |
| 4 | 07 11 9 963 252 | GASKET RING - A16X20-AL | 1 | |
| 5 | 11 73 1 337 449 | VALVE - SLS | 1 | |
| 6 | 11 73 1 337 448 | VALVE - SLS | 1 | |
| 7 | 13 72 1 337 342 | HOSE CLAMP - SLS | 1 | |
| 8 | 11 71 1 337 464 | HOSE ASSY - SLS | 1 | |
| 9 | 11 73 1 337 503 | VACUUM HOSE BLACK - 110MM/SLS | 1 | |
| 10 | 13 72 1 337 468 | GROMMET - SLS | 1 | |
| 11 | 11 73 1 261 489 | T-CONNECTOR | 1 | |
| 12 | 11 73 1 337 504 | VACUUM HOSE BLACK - 340MM/SLS | 1 | |
| 13 | 11 72 7 545 323 | VACUUM HOSE BLACK - 3,5X1,8 (meter) | 1 | |
| 14 | 13 72 1 337 516 | HOSE CLAMP - SLS | 1 |
