R65 (2472) | Fuel Preparation

AIR CLEANER HOUSING

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #13_0460 | 16 parts

100%

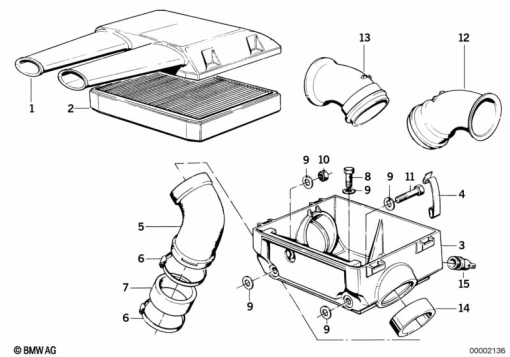

R65 (2472) AIR CLEANER HOUSING exploded view parts diagram

Parts List (16)

#	Part Number	Description	Qty
1	13 72 1 337 675	AIR CLEANER HOUSING TOP	-
2	13 72 1 337 080P	K&N AIR FILTER	-
	13 72 9 062 492	AIR FILTER ELEMENTAlternative for position 2	-
4	13 72 1 337 105	0.02	-
5	13 72 1 335 111	SUCTION PIPE LEFT	-
6	07 12 9 952 121	HOSE CLAMP - L=47-54MM	-
7	13 72 1 264 392	RUBBER GROMMET - 50X59X30	-
8	07 11 9 913 652	HEX BOLT - M8X22 (to 04/92)	-
9	13 72 1 337 205	WASHER - 8.4X16X3	-
10	07 11 9 904 032	HEX NUT - M8-8-ZNS3 (to 12/95)	-
	07 11 9 905 515	HEX NUT - M8-8-ZNNIV SIAlternative for position 10	-
11	07 11 9 901 033	FILLISTER-HEAD SCREW - M8X45-8.8	-
12	13 72 1 337 233	FUNNEL LEFT	-
13	13 72 1 337 078	FUNNEL RIGHT	-
14	13 72 1 337 229	PIPE	-
15	13 72 1 337 162	RUBBER VALVE	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
