R65 (2472) | Frame, Fairing, Cases
LEATHER SADDLE BAG

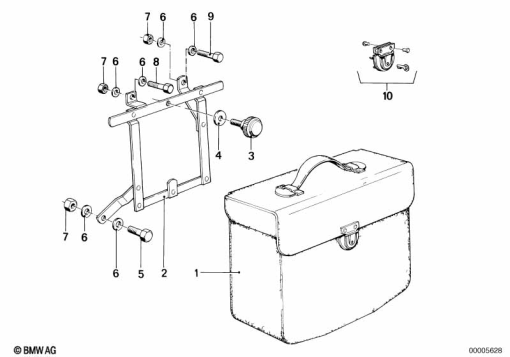

Diagram #46_0132 | 15 parts | 3 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 71 60 1 238 511 | LEATHER SADDLE BAG | 1 | |
| 2 | 71 60 2 303 011 | SADDLE BAG HOLDER LEFT | 1 | |
| 2 | 71 60 2 303 012 | SADDLE BAG HOLDER RIGHT | 1 | |
| 3 | 71 60 1 231 263 | KNURLED BOLT | 1 | |
| 4 | 07 11 9 903 791 | WASHER - A6,4-200HV-ZNS3 | 1 | |
| 4 | 07 11 9 936 426 | FLAT WASHER | 1 | |
| 5 | 07 11 9 913 589 | HEX BOLT - M6X25 | 1 | |
| 6 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | 1 | |
| 7 | 07 12 9 922 705 | SELF-LOCKING HEX NUT - M6-10 ZN (to 12/95) | 1 | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT - M6 ZNNIV SI | 1 | |
| 8 | 07 11 9 913 016 | HEX BOLT - M6X20-8.8-ZNS | 1 | |
| 8 | 07 11 9 913 016.1 | STAINLESS 6 X 20 BOLT | 1 | |
| 7 | 07 14 7 575 163 | SELF-LOCKING HEX NUT | 1 | |
| 9 | 07 11 9 913 021 | HEX BOLT - M6X28-8.8-ZNS | 1 | |
| 10 | 71 60 1 232 278 | LOCK | 1 |
