R65 (2472) | Exhaust System
EXHAUST SYSTEM

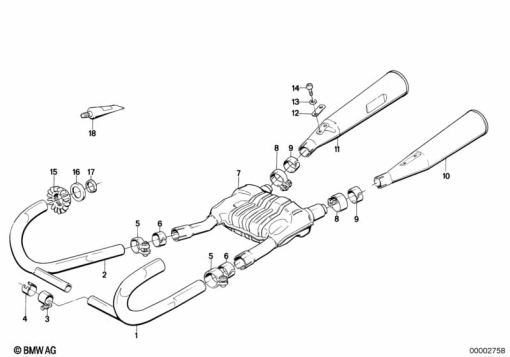

Diagram #18_0275 | 21 parts
100%
Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 11 1 452 065 | EXHAUST PIPE LEFT | - | |
| 2 | 18 11 1 452 066 | EXHAUST PIPE, RIGHT | - | |
| 3 | 18 21 1 454 638 | MUFFLER CLAMP - D=27 | - | |
| 4 | 18 21 1 454 639 | GASKET | - | |
| 5 | 18 21 1 454 379 | MUFFLER CLAMP - LEFT D=43 | - | |
18 21 1 454 380 | MUFFLER CLAMP - RIGHT D=43Alternative for position 5 | - | ||
| 6 | 18 21 1 454 656 | GASKET | - | |
| 7 | 18 12 1 452 097 | FRONT MUFFLER | - | |
| 8 | 18 21 1 454 381 | MUFFLER CLAMP - LEFT D=49 | - | |
18 21 1 454 382 | MUFFLER CLAMP - RIGHT D=49Alternative for position 8 | - | ||
| 9 | 18 21 2 331 955 | GASKET - BACK | - | |
| 10 | 18 12 1 458 361 | MUFFLER, LEFT - NIROSTA | - | |
| 11 | 18 12 1 458 362 | MUFFLER, RIGHT - NIROSTA | - | |
| 12 | 18 21 1 452 364 | MOUNTING PLATE | - | |
| 13 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 | - | |
| 14 | 07 11 9 901 023 | screw 8x1.25x16 socket head cap | - | |
07 11 9 904 101 | FILLISTER-HEAD SCREW - M8X16-8.8-ZNS3Alternative for position 14 | - | ||
07 11 9 904 101 | SCREWAlternative for position 14 | - | ||
| 15 | 18 21 1 335 595 | NUT - M48X2 | - | |
| 17 | 18 21 1 335 598 | CLAMP RING | - | |
| 18 | 18 21 9 062 599 | ASSEMBLING PASTE - 100G | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
