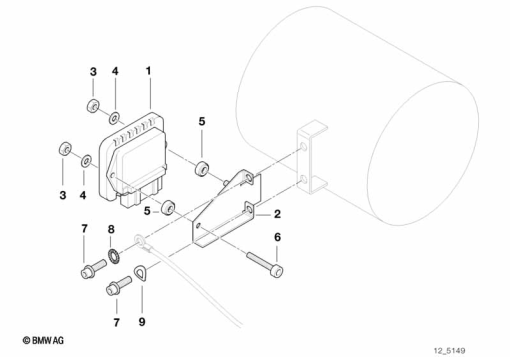

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 14 1 244 191 | REPLACEMENT CONTROL UNIT | - | |
12 14 2 325 284 | IGNITION CONTROL UNITAlternative for position 1 | - | ||
12 14 2 325 287 | HOLDERAlternative for position 1 | - | ||
12 14 2 325 287.1 | SS MODULE BRACKETAlternative for position 1 | - | ||
| 2 | 12 14 2 325 293 | SPACER | - | |
07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIVAlternative for position 2 | - | ||
07 11 9 904 206 | WASHER - 10X5,3X1-200 HVAlternative for position 2 | - | ||
| - | 07 11 9 913 925 | HEX BOLT - M5X30-8.8-ZNS | - | |
| 2 | 07 11 9 921 038 | HEX NUT - M5-4-ZN | - | |
| - | 07 11 9 932 0701 | SS 6MM WASHER | - | |
| - | 07 11 9 932 073 | BLACK SPRING WASHER | - | |
| - | 07 11 9 936 133 | TOOTH WASHER - A6,4 | - | |
| - | 07 11 9 936 439 | WASHER - 5.3-140 HV-ZNS | - | |
| 2 | 12 14 2 325 287 | HOLDER | - | |
12 14 2 325 287.1 | SS MODULE BRACKETAlternative for position 2 | - | ||
| 3 | 07 11 9 921 038 | HEX NUT - M5-4-ZN | - | |
| 4 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 4 | - | ||
| 5 | 12 14 2 325 293 | SPACER | - | |
| 6 | 07 11 9 913 925 | HEX BOLT - M5X30-8.8-ZNS | - | |
| 7 | 07 12 9 905 867 | ISA SCREW - M6X12-8.8-ZNNIV | - | |
| 8 | 07 11 9 936 133 | TOOTH WASHER - A6,4 | - | |
| 9 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 9 | - | ||
07 11 9 904 496 | WAVE WASHER - B6-ZNS3Alternative for position 9 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 9 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 9 | - |
