R65 (2472) | Electrical System

RETROFIT KIT, SOCKET

Diagram #61_0255 | 14 parts

100%

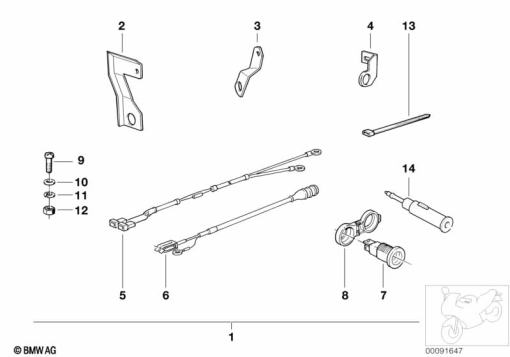

R65 (2472) RETROFIT KIT, SOCKET exploded view parts diagram

Parts List (14)

#Part NumberDescriptionQty
1
61 13 2 300 473
SET: RETROFIT KIT, SOCKET (to 08/90)-
3
61 13 2 300 472
HOLDER-
5
61 12 1 243 659
WIRING PLUG TERMINAL (to 01/91)-
7
61 13 1 379 719
PLUG-IN SOCKET (to 01/91)-
8
61 12 2 303 574
COVER (to 01/91)-
9
07 11 9 913 015
HEX BOLT - M6X16-8.8-ZNS-
10
07 11 9 904 202
WASHER - A6,4-ZNNIV SI-
11
07 11 9 932 073
SPRING WASHER BLACK - B6-ZN-
07 11 9 936 439
WASHER - 5.3-140 HV-ZNSAlternative for position 11-
07 11 9 904 496
WAVE WASHER - B6-ZNS3Alternative for position 11-
07 11 9 932 0701
SS 6MM WASHERAlternative for position 11-
07 11 9 932 073
BLACK SPRING WASHERAlternative for position 11-
12
07 11 9 905 543
HEX NUT - M6-8-ZNNIV SI-
13
61 13 1 367 599
CABLE TIE - L=200MM/B=3,6MM-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
