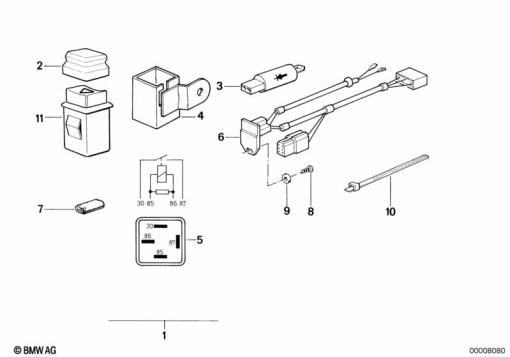

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 31 1 459 578 | SET: INSTALLING SET HAZARD WARNING | - | |
| 2 | 61 31 1 243 644 | PROTECTION CAP | - | |
| 3 | 61 31 1 358 265 | DIODE | - | |
| 5 | 61 31 1 373 585 | RELAY - YELLOW | - | |
61 31 1 373 588 | MINI-RELAYAlternative for position 5 | - | ||
| 6 | 61 12 1 244 412 | WIRING HAZARD WARNING | - | |
| 7 | 61 13 1 362 373 | INSULATION SLEEVE | - | |
| 8 | 07 11 9 907 786 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X13 | - | |
| 9 | 07 11 9 904 206 | WASHER - 10X5,3X1-200 HV | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 9 | - | ||
| 10 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - | |
61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MMAlternative for position 10 | - | ||
| 11 | 61 31 1 243 007 | ADDITIONAL SWITCH | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
