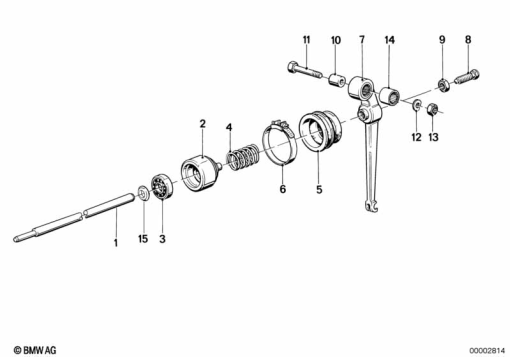

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 13 1 241 844 | 0.18 | - | |
23 13 1 464 167 | PISTONAlternative for position 1 | - | ||
| 2 | 23 13 1 464 167 | PISTON | - | |
| 3 | 07 11 9 984 020 | GROOVED BALL BEARING - 51100 (to 06/88) | - | |
| 4 | 23 13 1 241 849 | SPRING | - | |
| 5 | 23 13 1 338 731 | 0.02 | - | |
| 6 | 23 13 1 241 872 | CLAMP - D=40 | - | |
| 7 | 23 13 1 241 847 | CLUTCH LEVER | - | |
23 13 1 242 000 | CLUTCH LEVERAlternative for position 7 | - | ||
| - | 23 13 1 238 422 | NEEDLE SLEEVE - 12X18X16 | - | |
| 8 | 23 13 1 241 848 | SCREW | - | |
| 9 | 07 11 9 904 948 | HEX NUT - M8-05-ZNNIV SI | - | |
| 10 | 23 13 1 241 833 | BUSH | - | |
| 11 | 07 11 9 902 998 | HEX BOLT - M6X35-8.8-ZNS3 | - | |
07 11 9 901 189 | bolt 6x1.0x35Alternative for position 11 | - | ||
| 12 | 07 11 9 932 073 | SPRING WASHER BLACK - B6-ZN | - | |
07 11 9 936 439 | WASHER - 5.3-140 HV-ZNSAlternative for position 12 | - | ||
07 11 9 932 0701 | SS 6MM WASHERAlternative for position 12 | - | ||
07 11 9 932 073 | BLACK SPRING WASHERAlternative for position 12 | - | ||
| 13 | 07 11 9 921 054 | HEX NUT - M6-04-2-ZN | - | |
| 14 | 23 13 1 238 422 | NEEDLE SLEEVE - 12X18X16 | - | |
| 15 | 23 13 1 239 891 | BUSH | - |
