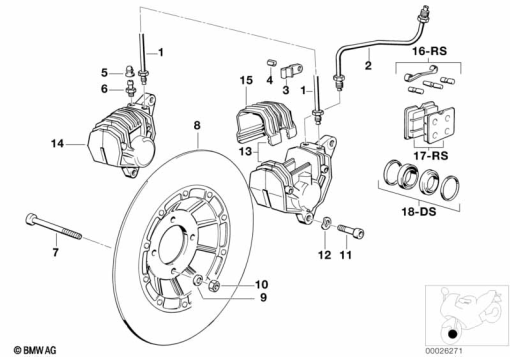

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 1 454 920 | BRAKE PIPE (to 04/88) | 1 | |
| 1 | 34 32 1 458 290 | BRAKE PIPE (from 04/88) | 1 | |
| 2 | 34 32 1 454 180 | BRAKE PIPE LEFT (to 04/88) | 1 | |
| 2 | 34 32 1 458 289 | BRAKE PIPE RIGHT (from 04/88) | 1 | |
| 3 | 34 32 1 454 898 | CLAMP (to 08/88) | 1 | |
| 4 | 34 32 4 050 540 | RUBBER GROMMET (to 08/88) | 1 | |
| 5 | 34 21 1 236 794 | DUST CAP (to 08/88) | 1 | |
| 6 | 34 21 1 236 793 | VENT SCREW - M10X1-ZN (to 08/88) | 1 | |
| 7 | 07 11 9 906 725 | FILLISTER-HEAD SCREW - M10X95-8.8 (to 08/88) | 1 | |
| 8 | 34 11 1 454 612 | BRAKE DISK (to 08/88) | 1 | |
| 8 | 34 11 2 316 067 | LEFT FLOATING BRAKE DISC (to 08/88) | 1 | |
| 8 | 34 11 2 316 068 | RIGHT FLOATING BRAKE DISC (to 08/88) | 1 | |
| 9 | 07 11 9 907 114 | WASHER - 10-200HV-ZNNIV (to 08/88) | 1 | |
| 10 | 07 12 9 964 672 | SELF-LOCKING HEX NUT - M10 (to 08/88) | 1 | |
| 11 | 07 11 9 901 049 | FILLISTER-HEAD SCREW - M10X30-8.8-ZNS (to 08/88) | 1 | |
| 12 | 07 11 9 904 463 | WAVE WASHER - B10-ZNS3 (to 08/88) | 1 | |
| 13 | 34 11 1 465 276 | BRAKE CALIPER WITHOUT PAD - D=38 (to 08/88) | 1 | |
| 14 | 34 11 7 723 307 | BRAKE CALIPER WITHOUT PAD - D=38MM (to 08/88) | 1 | |
| 15 | 34 11 1 454 120 | COVERING CAP - BREMBO (to 08/88) | 1 | |
| 15 | 34 11 1 454 653 | COVERING CAP - 20 3254.32 (to 08/88) | 1 | |
| 16 | 34 11 1 454 005 | SET: SET MOUNTING PARTS (to 08/88) | 1 | |
| 17 | 34 21 7 657 025 | SET: BRAKE PADS KIT (to 08/88) | 1 | |
| 17 | 83 12 2 296 187 | Brake Pad Paste - 5 ml | 1 | |
| 18 | 34 11 2 310 493 | SET: REPAIR SET BRAKE CALIPER (to 08/88) | 1 | |
| 17 | 34 21 7 657 025 | BRAKE PADS KIT | 1 |
