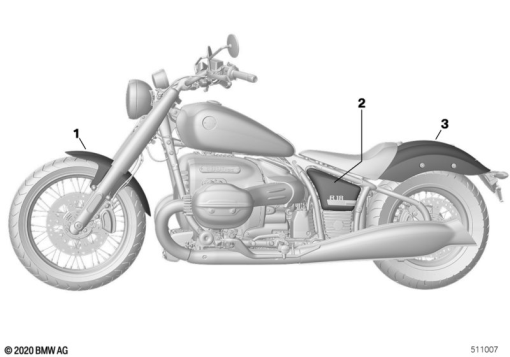

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 1 542 517 | FRONT WHEEL FENDER - BLACKSTORM MET. | - | |
| 4 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 46 63 1 542 519 | SIDE COVER LEFT - BLACKSTORM MET. | - | |
| - | 46 63 1 542 520 | SIDE COVER RIGHT - BLACKSTORM MET. | - | |
| - | 46 62 1 542 518 | REAR WHEEL COVER - BLACKSTORM MET. | - | |
| - | 46 62 1 542 524 | REAR WHEEL COVER - BLACKSTORM MET. | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
