R18 Classic (K34) | Steering

MOTORCYCLE HANDLEBARS

Diagram #32_2698 | 34 parts

100%

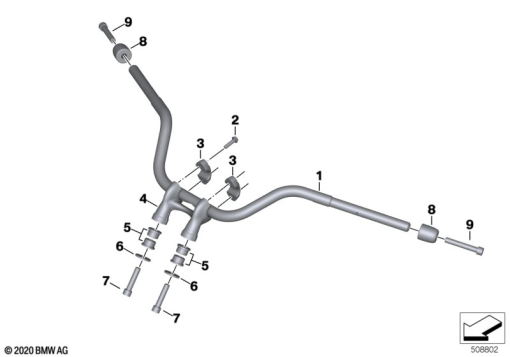

R18 Classic (K34) MOTORCYCLE HANDLEBARS exploded view parts diagram

Parts List (34)

#Part NumberDescriptionQty
1
32 71 9 899 211
HANDLEBAR, CHROME (to 04/22)-
-
32 71 1 541 275
CLAMPING BLOCK, UPPER, ANODIZED (to 04/22)-
-
32 71 1 541 276
CLAMPING BLOCK, UPPER, CHROME (to 04/22)-
-
32 71 1 541 277
CLAMPING BLOCK, LOWER, ANODIZED - 25X9X10 (to 04/22)-
-
32 71 1 541 278
CLAMPING BLOCK, LOWER, CHROME (to 04/22)-
1
32715A67BD1
HANDLEBARS CHROME-
-
32 71 7 108 035
CLAMPING BLOCK, UPPER, ANODIZED-
-
32 71 7 108 036
CLAMPING BLOCK, UPPER, CHROME-
-
32 71 7 108 037
CLAMPING BLOCK, LOWER, ANODIZED-
-
32 71 7 108 038
CLAMPING BLOCK, LOWER, CHROME-
-
07 12 9 908 523
FILLISTER-HEAD SCREW - M12X55-8.8-
2
07 12 9 907 381
FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV-
3
32 71 7 108 035
CLAMPING BLOCK, UPPER, ANODIZED-
-
32 71 7 108 034
HANDLEBAR, CHROME-
3
32 71 1 541 275
CLAMPING BLOCK, UPPER, ANODIZED-
-
32 71 9 899 211
HANDLEBAR, CHROME-
3
32 71 7 108 036
CLAMPING BLOCK, UPPER, CHROME-
-
32 71 7 108 034
HANDLEBAR, CHROME-
3
32 71 1 541 276
CLAMPING BLOCK, UPPER, CHROME-
-
32 71 9 899 211
HANDLEBAR, CHROME-
4
32 71 7 108 037
CLAMPING BLOCK, LOWER, ANODIZED-
-
32 71 7 108 034
HANDLEBAR, CHROME-
4
32 71 7 108 038
CLAMPING BLOCK, LOWER, CHROME-
-
32 71 7 108 034
HANDLEBAR, CHROME-
5
32 71 7 923 069
BUSH (to 06/22)-
6
32 71 9 899 219
WASHER-
7
07 12 9 908 523
FILLISTER-HEAD SCREW - M12X55-8.8-
-
32 71 9 899 219
WASHER-
8
32 71 1 540 655
HANDLEBAR WEIGHT, BLACK-
32 71 1 541 099
HANDLEBAR VIBRATION ABSORBER, CHROMEAlternative for position 8-
9
07 11 9 908 207
FILLISTER-HEAD SCREW - M12X75-10.9-MK (to 10/22)-
07 12 9 908 523
FILLISTER-HEAD SCREW - M12X55-8.8Alternative for position 9-
07 12 9 908 523
FILLISTER-HEAD SCREW - M12X55-8.8Alternative for position 9-
-
32715A67BD1
HANDLEBARS CHROME-
