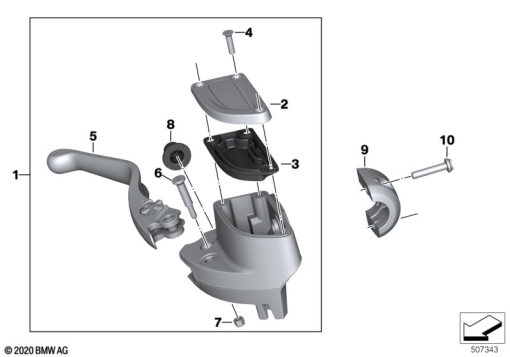

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 8 414 663 | HANDBRAKE LEVER - BLACK/ POLISHED (to 02/23) | - | |
32725A70AE2 | HANDBRAKE FITTING, BLACK - D18Alternative for position 1 | - | ||
32 72 9 443 637 | HANDBRAKE LEVER - CHROME (to 07/23)Alternative for position 1 | - | ||
32725A8CB46 | HANDBRAKE FITTING, CHROME - D18Alternative for position 1 | - | ||
| 2 | 32 72 9 443 855 | COVER - BLACK | - | |
32 72 9 443 856 | COVER - CHROMEAlternative for position 2 | - | ||
| 3 | 32 72 9 443 618 | RUBBER BOOT | - | |
| 4 | 32 72 9 443 918 | COUNTERSUNK SCREW - M5X20 ZNNIV SI | - | |
| 5 | 32 72 7 921 688 | SET: SET, BRAKE LEVER - POLISHED | - | |
32 72 7 921 687 | SET: SET, BRAKE LEVER - CHROMEAlternative for position 5 | - | ||
| 6 | 32 72 8 534 340 | COUNTERSUNK HEAD SCREW | - | |
| 7 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 8 | 32 72 7 673 919 | DUST PROTECTION COLLAR | - | |
| 9 | 32 72 8 414 664 | PIPE CLAMP - BLACK | - | |
32 72 9 443 638 | PIPE CLAMP - CHROMEAlternative for position 9 | - | ||
| 10 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | - |
