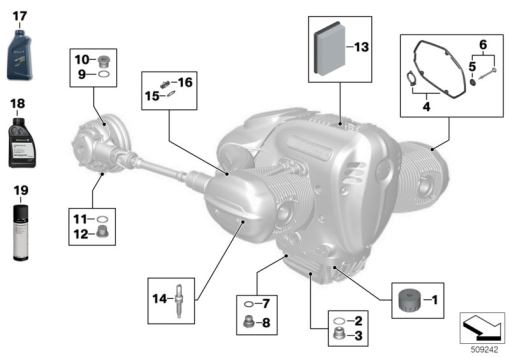

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 7 673 541 | OIL FILTER | - | |
| 2 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 3 | 11 13 7 720 999 | SCREW PLUG, MAGNETIC - M16X1,5-ZNNIV (to 04/23) | - | |
07145A71AF9 | SCREW PLUG. MAGNET - M16X1,5Alternative for position 3 | - | ||
| 5 | 11 12 7 654 978 | RUBBER BUSH | - | |
| 6 | 11 12 7 698 958 | SCREW WITH BUSH | - | |
| 7 | 07 11 9 963 200 | GASKET RING - A14X18-AL (to 04/21) | - | |
07 11 9 963 226 | GASKET RING - A14X20-CUAlternative for position 7 | - | ||
| 8 | 11 11 8 550 006 | SCREW PLUG - M14X1.5 - AL | - | |
| 9 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 10 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 11 | 33 11 7 695 219 | O-RING - 11,2X1,8 | - | |
| 12 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | - | |
| 13 | 13 71 8 411 061 | AIR CLEANER | - | |
| 14 | 12 12 8 396 344 | SPARK PLUG | - | |
| 15 | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 16 | 11 12 8 526 288 | OIL COVER LID | - | |
| - | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 17 | 83 21 2 365 963 | MOTOR OIL ADVANTEC 15W-50 - 1L | - | |
| 18 | 83 22 2 460 128 | HYPOID AXLE OIL G3 - 0,5L | - | |
| 19 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | - | |
83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500MLAlternative for position 19 | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
