R18 Classic (K34) | Service Items

BRAKE SERVICE

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #02_0292 | 34 parts

100%

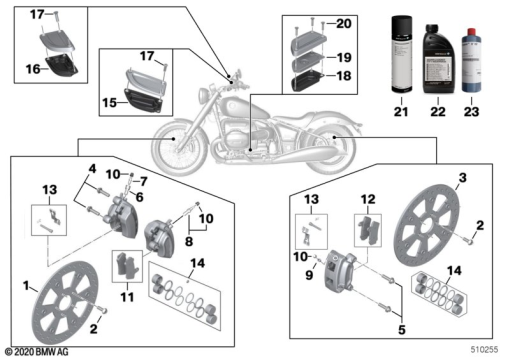

R18 Classic (K34) BRAKE SERVICE exploded view parts diagram

Parts List (34)

#	Part Number	Description	Qty
1	34 11 8 414 426	BRAKE ROTOR, FRONT - D=300-5.0MM (to 08/24)	1
1	34 11 8 866 099	BRAKE ROTOR, FRONT - D=300-5.0MM	1
2	07 12 9 908 527	FILLISTER-HEAD SCREW - M10X30-10.9-MK	1
3	34 21 8 414 428	REAR BRAKE DISC - D=300-7.0MM (to 04/22)	1
3	34 21 8 392 568	REAR BRAKE DISC - D=300-7.0MM (to 04/23)	1
3	34 21 8 859 061	BRAKE DISK REAR - D=300-7.0MM (to 08/24)	1
3	34 21 8 866 100	REAR BRAKE DISC - D=300-7.0MM	1
4	07 12 9 909 585	FILLISTER-HEAD SCREW - M10X40-10.9	1
5	34 21 9 480 231	TORX SCREW - M10X40-10.9	1
6	34 32 8 549 328	VENTILATION BOLT	1
7	34 11 8 520 872	VENT SCREW	1
8	34 32 8 559 191	SCREW PLUG WITH VENTILATION	1
9	34 21 8 535 153	VENT SCREW	1
10	34 21 2 314 001	34 21 2 314 001	3
11	34 11 9 444 023	SET: BRAKE PADS KIT	1
11	83 12 2 296 187	Brake Pad Paste - 5 ml	1
12	34 21 1 542 640	SET: BRAKE PADS KIT	1
12	83 12 2 296 187	Brake Pad Paste - 5 ml	1
13	34 11 9 444 024	SET: SET OF MOUNTING PARTS, BRAKE PADS	1
14	34 11 9 444 025	SET: SET PISTONS WITH GASKET	1
15	32 72 9 457 276	BOOT	1
16	32 72 9 443 618	RUBBER BOOT	1
17	32 72 9 443 918	COUNTERSUNK SCREW - M5X20 ZNNIV SI	1
18	34 31 9 443 954	RUBBER BOOT	1
19	34 31 9 443 953	PLATE	1
20	34 31 9 443 965	SET OF SCREWS - M4X20	1
21	83195A23100	BRAKE CLEANER, ACETONE-FREE - 500ML	1
21	83195A260A8	BRAKE CLEANER, ACETONE-FREE - 500ML	1
22	83 13 2 445 461	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L (to 01/23)	1
22	83105A87362	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L	1
22	83135A824F1	BRAKE FLUID DOT4, LOW-VISCOSITY EU - 60L	1
22	83 13 2 467 961	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML (to 01/23)	1
22	83105A87361	BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML	1
23	21 52 2 455 540	TRANSMISSION OIL HYSPIN V10 - 250 ML	1
