R18 Classic (K34) | Seat
BENCH SEAT

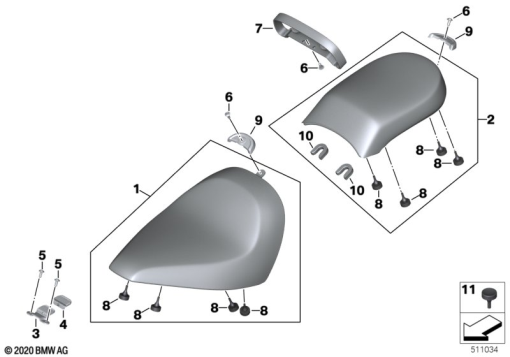

Diagram #52_4703 | 17 parts
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 9 457 329 | DRIVERS SEAT, BLACK, HIGH | - | |
52 53 9 829 339 | DRIVERS SEAT, BLACK - 680MMAlternative for position 1 | - | ||
52 53 9 829 340 | DRIVERS SEAT, BLACK, HIGHAlternative for position 1 | - | ||
52 53 8 403 308 | DRIVERS SEAT, BLACK, HIGHAlternative for position 1 | - | ||
52 53 8 402 062 | DRIVERS SEAT, BLACK - 680MMAlternative for position 1 | - | ||
52 53 9 457 328 | DRIVERS SEAT, BLACKAlternative for position 1 | - | ||
| 2 | 52 53 9 467 149 | PASSENGER SEAT, BLACK | - | |
52 53 9 829 341 | PASSENGER SEAT, BLACKAlternative for position 2 | - | ||
| 3 | 52 53 9 444 676 | BRACKET, RIDERS SEAT | - | |
| 4 | 52 53 9 899 406 | DECOUPLING ELEMENT | - | |
| 5 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 6 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 7 | 52 53 8 403 749 | GRAB STRAP FOR SEAT | - | |
| 8 | 52 53 7 713 890 | RUBBER SUPPORT - 25MM | - | |
| 9 | 52 53 9 444 677 | COVER | - | |
| 10 | 52 53 7 682 361 | DECOUPLING ELEMENT | - | |
| 11 | 52 53 7 718 633 | RUBBER BUFFER - 6MM | - |
