Parts List (5)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 23 1 539 659 | MULTIFUNCTIONAL INDICATOR LAMP, LEFT - SAE | - | |
| 2 | 63 23 1 539 660 | MULTIFUNCTIONAL INDICATOR LAMPS, RIGHT - SAE | - | |
| 3 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | - | |
| 5 | 12 52 1 437 136 | CLIP | - | |
| 6 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | - |

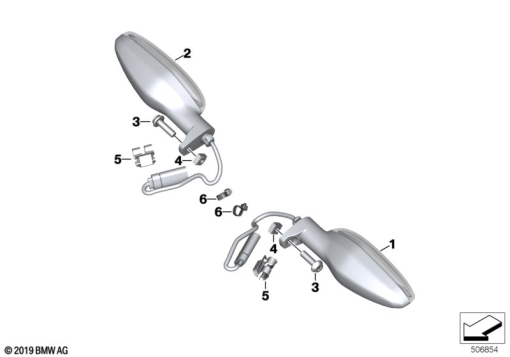

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
