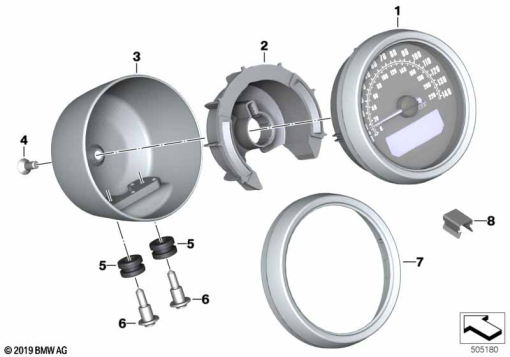

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62 11 8 102 928 | INSTRUMENT CLUSTER (to 08/23) | 1 | |
| 1 | 62115A84815 | INSTRUMENTENKOMBINATION | 1 | |
| 1 | 62115B3F8B8 | INSTRUMENT CLUSTER | 1 | |
| 1 | 62 11 9 830 105 | INSTRUMENT CLUSTER | 1 | |
| 1 | 62 11 8 102 929 | INSTRUMENT CLUSTER MPH (to 08/23) | 1 | |
| 1 | 62115A84820 | INSTRUMENT CLUSTER MPH (to 10/24) | 1 | |
| 2 | 62 11 9 467 601 | BRACKET F INSTRUMENT CLUSTER | 1 | |
| 3 | 62 11 9 480 185 | TRIM PANEL INSTRUMENTS COMBINATION | 1 | |
| 4 | 64 22 6 916 475 | COUNTERSUNK HEAD SCREW - M5X12-ZNS3 | 1 | |
| 5 | 62 11 8 356 970 | GROMMET | 1 | |
| 6 | 46 63 8 521 655 | BODY SCREW WITH SHOULDER - M5X20 | 1 | |
| 7 | 62 11 1 539 597 | TRIM RING - CHROM | 1 |
