R18 Classic (K34) | Handlebar & Luggage Kits
HANDLEBARS BEACH BAR AND RISER

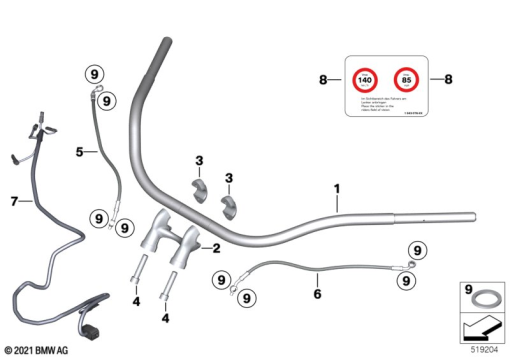

Diagram #03_5781 | 20 parts
100%
Parts List (20)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 22 9 457 392 | HANDLEBARS, BEACH BAR - CHROM | - | |
77 22 9 457 404 | HANDLEBARS, BEACH BAR - BLACKAlternative for position 1 | - | ||
| 2 | 07 11 9 908 207 | FILLISTER-HEAD SCREW - M12X75-10.9-MK | - | |
| - | 77 22 9 457 392 | HANDLEBARS, BEACH BAR - CHROM | - | |
| - | 77 22 9 457 404 | HANDLEBARS, BEACH BAR - BLACK | - | |
| 2 | 07 11 9 908 207 | FILLISTER-HEAD SCREW - M12X75-10.9-MK | - | |
| - | 77 22 2 469 368 | SET: SET, MIRROR, BLACK - RSD | - | |
| - | 77 22 2 469 369 | SET: SET, MIRROR, MACHINED - RSD | - | |
| 2 | 32 71 7 108 037 | CLAMPING BLOCK, LOWER, ANODIZED | - | |
32 71 7 108 038 | CLAMPING BLOCK, LOWER, CHROMEAlternative for position 2 | - | ||
| 3 | 32 71 7 108 035 | CLAMPING BLOCK, UPPER, ANODIZED | - | |
32 71 7 108 036 | CLAMPING BLOCK, UPPER, CHROMEAlternative for position 3 | - | ||
| 4 | 07 12 9 908 523 | FILLISTER-HEAD SCREW - M12X55-8.8 | - | |
| 5 | 77 22 7 923 458 | BRAKE HOSE - L=455 MM | - | |
| 6 | 32 72 7 923 466 | CLUTCH LINE - L=439 MM | - | |
| 7 | 61 12 1 605 827 | WIRING HARNESS, HANDLEBAR, LEFT | - | |
61 12 1 606 419 | WIRING HARNESS, HANDLEBAR, RIGHTAlternative for position 7 | - | ||
| 8 | 77 22 7 914 449 | NOTICE, SPEED - 140KM/H | - | |
77 22 7 914 450 | NOTICE, SPEED - 85MPHAlternative for position 8 | - | ||
| 9 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - |
