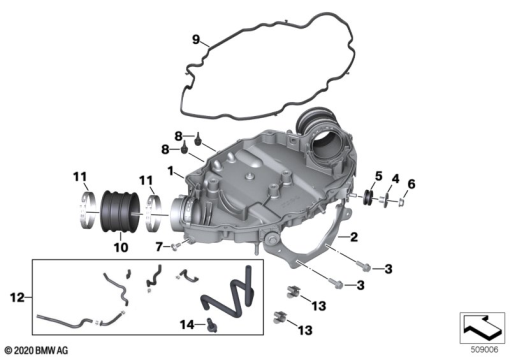

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 8 413 349 | INTAKE MUFFLER, BOTTOM | 1 | |
| 2 | 13 71 8 414 433 | BRACKET. INTAKE SILENCER | 1 | |
| 3 | 07 11 9 905 546 | HEXAGON SCREW WITH FLANGE - M6X20 | 1 | |
| 4 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 5 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 6 | 07 11 9 905 544 | HEX NUT WITH PLATE - M6-8-ZNNIV SI | 1 | |
| 7 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 8 | 51 16 8 161 558 | RUBBER BUFFER | 1 | |
| 9 | 13 71 8 413 361 | SEAL, INTAKE SILENCER | 1 | |
| 10 | 11 61 8 411 410 | BUSHING | 1 | |
| 11 | 11 61 7 710 724 | MUFFLER CLAMP - D=59MM | 1 | |
| 12 | 13 71 7 923 523 | SET: SET, HOSES, DIFFERENTIATED INTAKE SYSTEM | 1 | |
| 13 | 61 27 8 662 930 | HOLDER | 1 | |
| 14 | 13 71 7 650 224 | PLUG | 1 |
