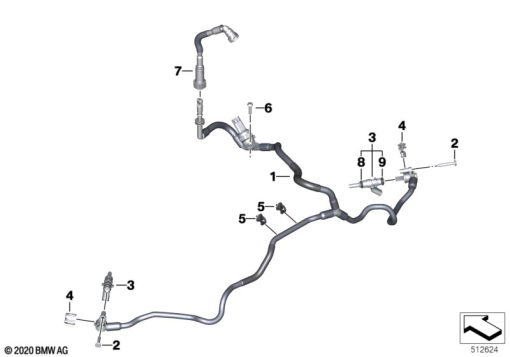

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 53 8 413 335 | FUEL DISTRIBUTOR WITH PRESSURE SENSOR | 1 | |
| 2 | 07 12 9 907 407 | FILLISTER-HEAD SCREW - M5X30-8.8-ZNNIV | 1 | |
| 3 | 13 61 8 567 156 | INJECTION VALVE | 1 | |
| 4 | 13 54 8 552 534 | SPRING CLIP | 1 | |
| 5 | 12 51 2 247 487 | CABLE STRAP WITH BRACKET - Ø=5,9 / L=150 | 1 | |
| 6 | 07 12 9 907 409 | FILLISTER-HEAD SCREW - M5X20 | 1 | |
| 7 | 13 53 8 414 420 | FUEL HOSE | 1 | |
| 8 | 13 64 7 675 557 | O-RING - 8,3X3,05 | 1 | |
| 9 | 13 64 1 437 476 | O-RING - 7,52X3,51 | 1 |
