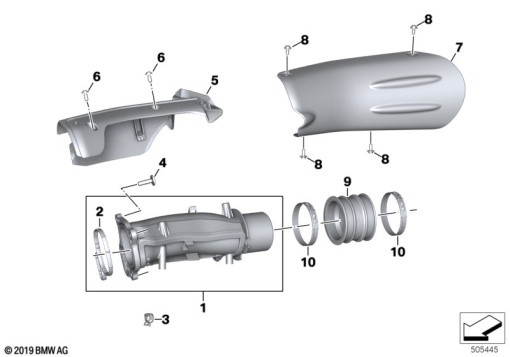

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 61 1 540 354 | SUCTION TUBE, RIGHT | - | |
11 61 1 540 353 | SUCTION TUBE, LEFTAlternative for position 1 | - | ||
| 2 | 11 61 8 409 741 | GASKET | - | |
| 3 | 17 12 8 619 117 | SPRING RING SHELL | - | |
| 4 | 07 14 9 281 969 | FILLISTER HEAD SCREW - ISA | - | |
| 5 | 11 61 9 467 672 | COVER, RIGHT | - | |
11 61 9 467 671 | COVER, LEFTAlternative for position 5 | - | ||
| 6 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 7 | 11 61 9 444 903 | COVER, LEFT - POLIERT | - | |
11 61 9 444 904 | COVER, RIGHT - POLIERTAlternative for position 7 | - | ||
11 61 9 444 799 | COVER, LEFT - CHROMAlternative for position 7 | - | ||
11 61 9 444 800 | COVER, RIGHT - CHROMAlternative for position 7 | - | ||
11 61 9 443 987 | COVER, LEFT - LACKIERT SWAlternative for position 7 | - | ||
11 61 9 443 988 | COVER, RIGHT - LACKIERT SWAlternative for position 7 | - | ||
| 8 | 11 61 1 540 853 | SCREW - M4X10 MK | - | |
| 9 | 11 61 8 411 410 | BUSHING | - | |
| 10 | 11 61 7 710 724 | MUFFLER CLAMP - D=59MM | - |
