R18 Classic (K34) | Engine Electrics

CRANKSHAFT SENSOR

Diagram #12_2720 | 6 parts

100%

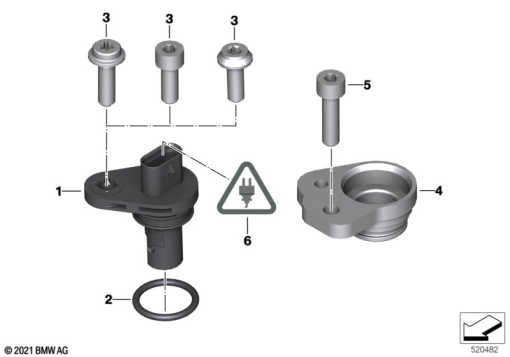

R18 Classic (K34) CRANKSHAFT SENSOR exploded view parts diagram

Parts List (6)

#Part NumberDescriptionQty
1
13 62 8 623 437
CRANKSHAFT SENSOR-
13 62 8 658 854
O-RING - 18,2X2,5Alternative for position 1-
3
07 12 9 905 536
ISA SCREW - M6X16-8.8-ZNNIV-
6
61 13 6 925 599
UNIVERSAL SOCKET HOUSING MLK UNCODED - 3 POL.-
-
61 13 8 353 705
SINGLE CONDUCTOR SEAL - 0.13-0.35MM²-
-
12 52 7 545 858
TERMINAL SOCKET MCON 1.2 ELA - 0,5-0,75MM² AG-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
