R18 Classic (K34) | Engine Electrics

ALTERNATOR

Diagram #12_2629 | 5 parts

100%

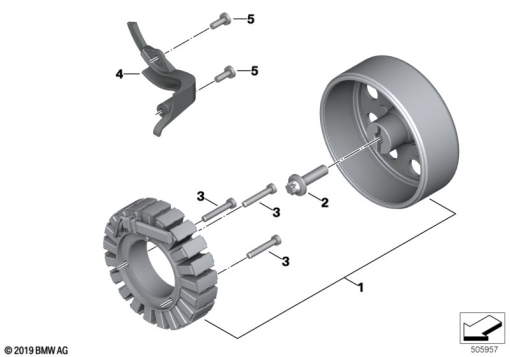

R18 Classic (K34) ALTERNATOR exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
12 31 8 414 440
ALTERNATOR1
2
07 11 9 909 662
SCREW - M10X1X35-10.91
3
07 12 9 909 660
SCREW - M6X35-10.9-MKL1
4
12 31 8 409 850
HOLDER1
5
07 11 9 906 443
SCREW - M6X16-8.8 ZNNIV1
