R18 Classic (K34) | Electrical System

RETAINING CLIPS, LINE CLIPS

Diagram #61_6232 | 4 parts

100%

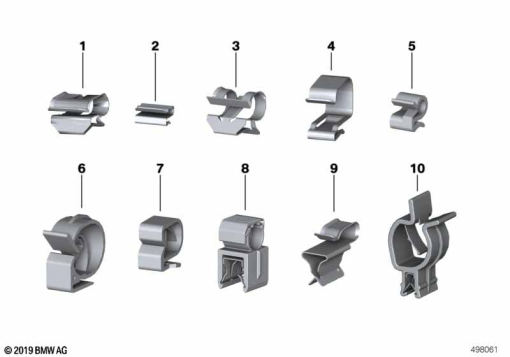

R18 Classic (K34) RETAINING CLIPS, LINE CLIPS exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
07 14 7 547 239
FIXING CLAMP - A=3,5 - 6,0MM1
1
12 52 1 437 136
CLIP1
1
61 13 7 670 182
FIXING CLAMP1
2
07 14 7 566 122
FIXING CLAMP - A=4,0 - 4,5MM1
