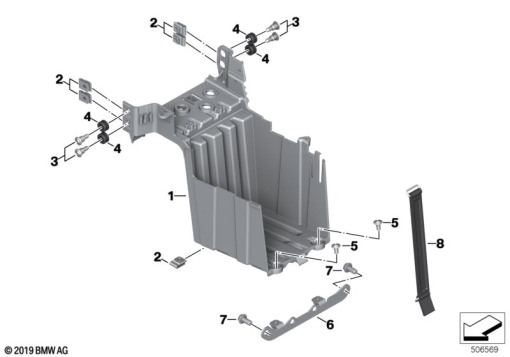

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61 21 9 480 665 | BATTERY TRAY | 1 | |
| 2 | 11 42 7 789 289 | CLIP NUT - M6-ZNS3 | 1 | |
| 3 | 46 63 8 521 658 | BODY SCREW WITH SHOULDER - M6 | 1 | |
| 4 | 34 51 8 537 512 | GROMMET | 1 | |
| 5 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | 1 | |
| 6 | 61 21 9 899 023 | BRACKET, BATTERY CARRIER | 1 | |
| 7 | 07 12 9 907 384 | ISA SCREW - M8X16-8.8-ZNNIV | 1 | |
| 8 | 61 21 9 480 670 | TENSION STRAP (to 08/23) | 1 |
