R18 Classic (K34) | Cooling

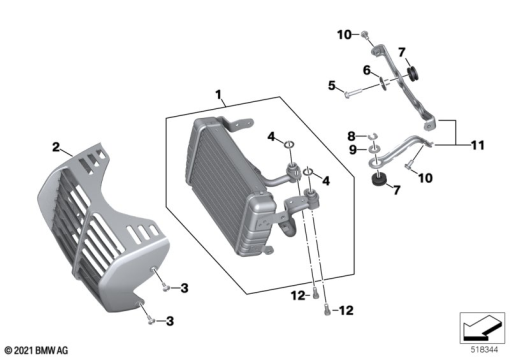

OIL COOLER
Diagram #17_1692 | 12 parts
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 21 1 540 859 | OIL COOLER | - | |
| 2 | 17 21 8 409 732 | COVER | - | |
| 3 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | - | |
| 4 | 07 11 9 909 664 | O-RING - 12,37X2,26 | - | |
| 5 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 6 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 7 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 8 | 07 12 9 905 244 | CIRCLIP - KL 10-ZNS3 | - | |
| 9 | 07 11 9 904 168 | WASHER - 10-200 HV-ZNNIV | - | |
| 10 | 07 12 9 909 849 | FILLISTER-HEAD SCREW - M6X12-8.8-MKL | - | |
| 11 | 17 21 7 923 314 | SET: BRACKET SET | - | |
| 12 | 07 11 9 909 631 | SCREW - M6X16-10.9-MKL | - |
