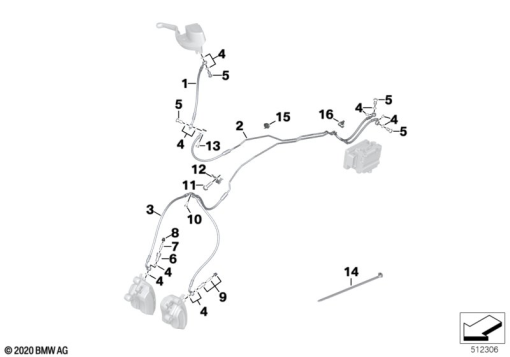

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 8 414 937 | BRAKE LINE FRONT | - | |
| 2 | 34 32 8 414 933 | BRAKE LINE FOR FRONT BRAKE CIRCUIT | - | |
| 3 | 34 32 9 832 009 | BRAKE LINE, FRONT BRAKE CIRCUIT | - | |
| 4 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | - | |
| 5 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | - | |
| 6 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 7 | 34 11 8 520 872 | VENT SCREW | - | |
| 8 | 34 21 2 314 001 | 34 21 2 314 001 | 2 | |
| 9 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 11 | 07 12 9 908 527 | FILLISTER-HEAD SCREW - M10X30-10.9-MK | - | |
| 13 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 14 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM (to 07/23) | - | |
61 13 1 377 134 | CABLE TIE - L=292MM/B=4,8MM (from 06/23)Alternative for position 14 | - | ||
| 15 | 12 52 1 741 316 | TUBING SUPPORT | - | |
32 73 1 465 257 | CABLE CLAMPAlternative for position 15 | - | ||
| 16 | 13 90 1 720 201 | HOSE CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
