R18 Classic (K34) | Accessories

MISCELLANEOUS LUGGAGE SYSTEM

Diagram #77_1553 | 4 parts

100%

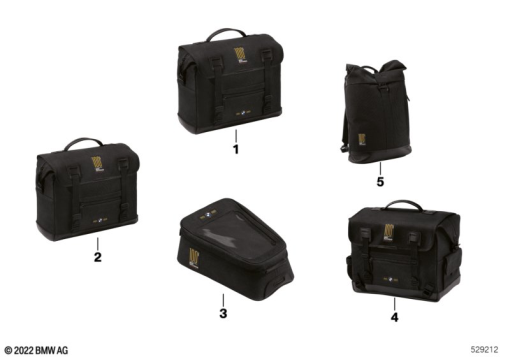

R18 Classic (K34) MISCELLANEOUS LUGGAGE SYSTEM exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
3
77455A5CCC9
TANK BAG EDITION 100 YEARS1
4
77495A5CCD9
REAR BAG EDITION 100 YEARS1
–
77 31 2 469 290
SET: SET, BOBBER1
5
77495A5CCA3
BACKPACK EDITION 100 YEARS1
