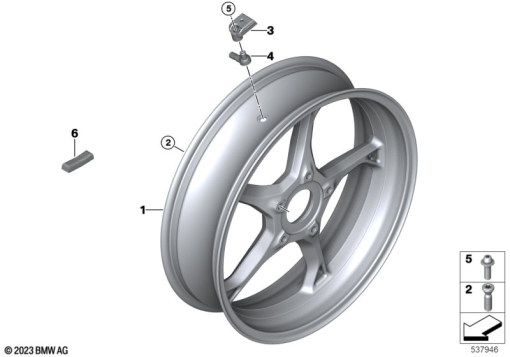

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36315A65AA7 | CAST RIM - 4.5X17 | - | |
| 2 | 36 31 7 673 903 | WHEEL BOLT - M10X1,25X40 | - | |
| 3 | 36 31 7 108 983 | RDC SENSOR - 433 MHZ | - | |
65 75 7 108 984 | RDC SENSOR - 315 MHZ JAPANAlternative for position 3 | - | ||
| 4 | 36 31 7 108 181 | ANGLE VALVE | - | |
| 5 | 36 31 9 829 827 | INTERNAL TORX SCREW WITH WASHER - M5 | - | |
| 6 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 6 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 6 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 6 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 6 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 6 | - |
