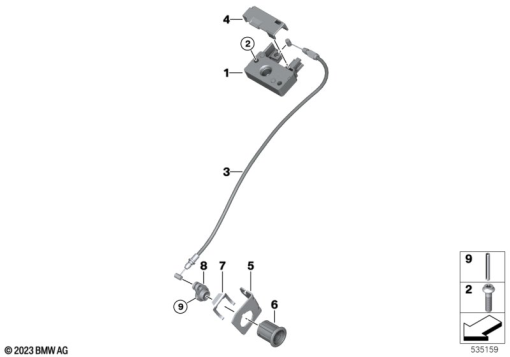

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 8 409 955 | SEAT BENCH LOCK | - | |
| 2 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | - | |
| 3 | 51 25 9 830 237 | BOWDEN CABLE DUALSEAT LOCK | - | |
| 4 | 51255A7D241 | COVER, BOWDEN CABLE | - | |
| 5 | 51 25 9 830 238 | LOCK HOLDER | - | |
| 6 | 51 25 9 830 239 | MOUNT LOCK CYLINDER | - | |
| 7 | 51 25 8 402 056 | SECURING PLATE | - | |
| 8 | 51255A657D6 | ECCENTRIC FOR REAR SEAT BENCH LOCK | - | |
| 9 | 07 11 9 941 417 | ROLL PIN - 2,5X18 | - |
