R1300GS 22 (KA1) | Transmission

TRANSMISSION SENSOR

Diagram #23_1427 | 3 parts

100%

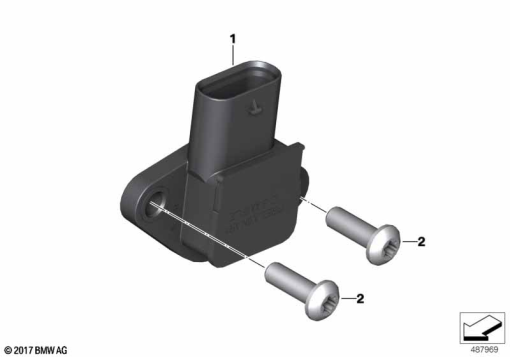

R1300GS 22 (KA1) TRANSMISSION SENSOR exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
23 00 8 567 158
SENSOR GEAR INDICATOR1
2
07 12 9 908 475
FILLISTER HEAD SCREW - M5X12-8.8-ZNNIV1
2
16 13 7 704 563
OVAL HEAD SCREW - M5X14-10.9-ZNS31
