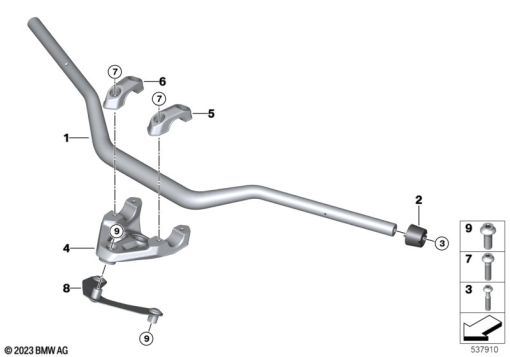

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 71 7 922 841 | LENKER | - | |
31425A8C3A0 | FLEX ELEMENTAlternative for position 1 | - | ||
| 3 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 32 71 8 828 767 | HANDLEBAR, HIGH | - | |
| - | 31425A8C3A0 | FLEX ELEMENT | - | |
| 3 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 32715A714D3 | HANDLEBARS, GOLD | - | |
| - | 31425A8C3A0 | FLEX ELEMENT | - | |
| 3 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 32 71 8 829 290 | HANDLEBAR WEIGHT | - | |
| 3 | 07 12 9 907 390 | FILLISTER-HEAD SCREW - M10X50-8.8 | - | |
| 4 | 31 42 7 922 837 | CONTROL ARM BRIDGE | - | |
| 5 | 32 71 7 922 843 | CLAMPING SUPPORT LEFT | - | |
| 6 | 32 71 7 922 844 | CLAMPING SUPPORT RIGHT | - | |
| 7 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 8 | 31425A8C3A0 | FLEX ELEMENT | - | |
| 9 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
