R1300GS 22 (KA1) | Service Items
ENGINE OIL / MAINTENANCE SERVICE

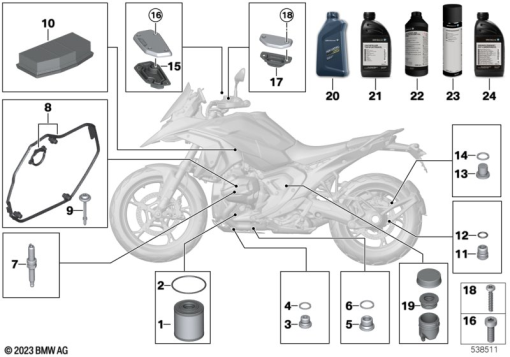

Diagram #02_0567 | 29 parts | 1 available in shop
100%
Parts List (29)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 42 7 105 320 | OIL FILTER | 1 | |
| 2 | 07 11 9 909 902 | O-RING - 99X2 | 1 | |
| 3 | 11 12 8 551 865 | SCREW PLUG - M10X1 AL | 1 | |
| 4 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 5 | 11 13 8 536 827 | OIL DRAIN PLUG - M16X1.5 | 1 | |
| 6 | 07 11 9 963 252 | GASKET RING - A16X20-AL | 1 | |
| 7 | 12 12 8 560 811 | SPARK PLUG - NGK LMAR8AI-10 | 1 | |
| 8 | 11 12 1 027 893 | SET: KIT SEAL CYLINDER HEAD COVER LEFT | 1 | |
| 8 | 11 12 1 027 894 | SET: KIT SEAL CYLINDER HEAD COVER RIGHT | 1 | |
| 9 | 11 12 8 523 552 | SCREW WITH BUSH | 1 | |
| 10 | 13725A72844 | AIR FILTER INSERT | 1 | |
| 11 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | 1 | |
| 12 | 33 11 7 695 219 | O-RING - 11,2X1,8 | 1 | |
| 13 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | 1 | |
| 14 | 07 11 9 963 132 | GASKET RING - A12X16-CU | 1 | |
| 15 | 32 72 1 657 237 | RUBBER COVER | 1 | |
| 16 | 07 12 9 904 977 | SCREW TORX DRIVE - M4X12 | 1 | |
| 17 | 32 72 7 105 741 | RUBBER COVER | 1 | |
| 18 | 32 72 8 534 149 | PT SCREW - 4X22 | 1 | |
| 19 | 34 31 1 642 446 | RUBBER COVER | 1 | |
| 20 | 83 21 2 365 958 | MOTOR OIL ADVANTEC 5W-40 - 1L | 1 | |
| 21 | 83 22 2 460 128 | HYPOID AXLE OIL G3 - 0,5L | 1 | |
| 21 | 83 22 2 471 423 | HYPOID AXLE OIL G3 - 60L | 1 | |
| 21 | 83 22 2 471 424 | HYPOID AXLE OIL G3 - 1000ML, TU | 1 | |
| 22 | 83515A6CDD7 | RADIATOR ANTIFREEZE - 1,5 LITER | 1 | |
| 23 | 83195A23100 | BRAKE CLEANER, ACETONE-FREE - 500ML | 1 | |
| 23 | 83195A260A8 | BRAKE CLEANER, ACETONE-FREE - 500ML | 1 | |
| 24 | 83105A87361 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 250ML | 1 | |
| 24 | 83105A87362 | BRAKE FLUID DOT4 LV, LOW VISCOSITY - 1L | 1 |
