R1300GS 22 (KA1) | Rear Axle & Suspension

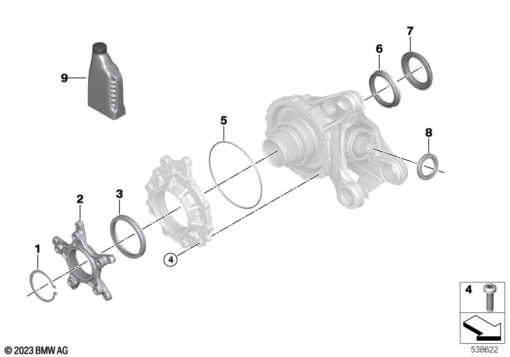

RIGHT-ANGLE GEARBOX, SINGLE PARTS
Diagram #33_3485 | 11 parts
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 905 076 | LOCK RING - 62X2 | - | |
| 2 | 33 74 7 105 385 | FLANGE | - | |
| 3 | 33 75 8 529 958 | SHAFT SEAL - 75X90X9 | - | |
| 4 | 33 74 8 553 623 | COUNTERSUNK SCREW - M8X30 8.8 ZNS3 | - | |
| 5 | 33 11 7 695 218 | O-RING - 138X2,62 | - | |
| 6 | 33 75 8 529 957 | SHAFT SEAL - 59,8X75X7,5 | - | |
| 7 | 33 74 7 105 384 | COVER | - | |
| 8 | 33 75 8 529 959 | SHAFT SEAL - 35X52X7 | - | |
| 9 | 83 22 2 460 128 | HYPOID AXLE OIL G3 - 0,5L | - | |
83 22 2 471 423 | HYPOID AXLE OIL G3 - 60LAlternative for position 9 | - | ||
83 22 2 471 424 | HYPOID AXLE OIL G3 - 1000ML, TUAlternative for position 9 | - |
