R1300GS 22 (KA1) | Pedals

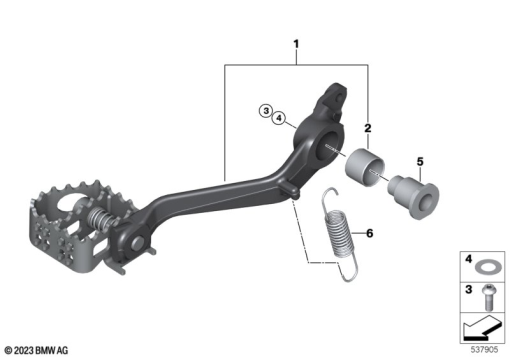

FOOTBRAKE LEVER, ADJUSTABLE
Diagram #35_0853 | 6 parts | 3 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 14 7 108 056 | FUßBREMSHEBEL - ENDURO | 1 | |
| 2 | 35 21 7 721 100 | BUSHING | 1 | |
| 3 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | 1 | |
| 4 | 07 14 7 701 307 | WASHER - 13,5X24X0,5 | 1 | |
| 5 | 35 21 7 923 121 | BEARING BUSH | 1 | |
| 6 | 35 21 7 716 108 | TENSION SPRING BRAKE PEDAL | 1 |
