R1300GS 22 (KA1) | Navigation & Alarm

MOUNT CRADLE

Diagram #65_3860 | 4 parts

100%

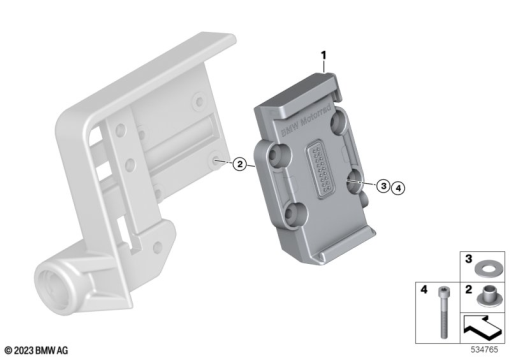

R1300GS 22 (KA1) MOUNT CRADLE exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
65 90 8 354 256
MOUNT CRADLE WITHOUT AUDIO MODE-
2
65 90 8 535 827
DECOUPLING SLEEVE-
3
07 11 9 904 924
WASHER - 9X4,3X0,8-A2-
4
07 12 9 902 610
INNER HEX BOLT - M4X30-A2-70-
