R1300GS 22 (KA1) | Navigation & Alarm

BRACKET LOCK, NAVIGATION SYSTEM PREP

Diagram #65_3862 | 3 parts

100%

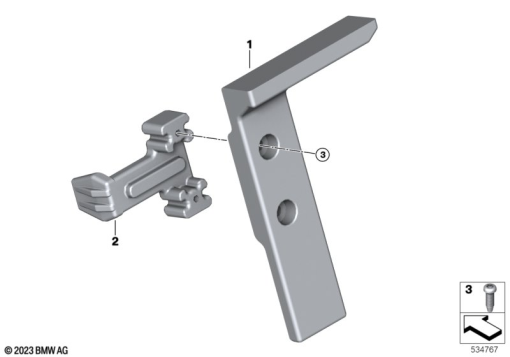

R1300GS 22 (KA1) BRACKET LOCK, NAVIGATION SYSTEM PREP exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
65 90 8 524 465
BRACKET LOCK, NAVIGATION SYSTEM PREP-
2
65 90 8 524 472
SLIDER-
3
62 11 8 528 443
FILLISTER HEAD SCREW-
