R1300GS 22 (KA1) | Lighting

NUMBER PLATE BASEPLATE / REAR REFLECTOR

Diagram #63_2674 | 4 parts

100%

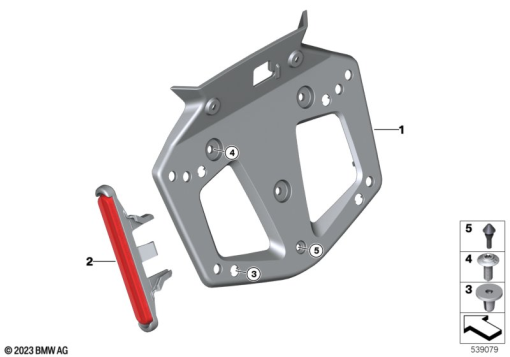

R1300GS 22 (KA1) NUMBER PLATE BASEPLATE / REAR REFLECTOR exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
63 26 7 105 882
LICENSE-PLATE CARRIER1
2
63 26 7 105 890
REFLECTOR, RED1
3
51 18 1 966 959
PLUG-IN NUT1
4
46 63 8 534 938
BODY SCREW WITHOUT SHOULDER - M5X14-A2-701
