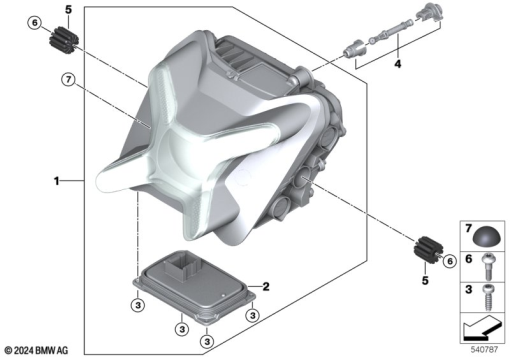

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 8 557 281 | LED HEADLIGHT | - | |
63 12 8 557 280 | LED HEADLIGHTAlternative for position 1 | - | ||
| 2 | 63 12 9 899 918 | CONTROL UNIT HEADLIGHT - FLC MID | - | |
63 12 9 899 917 | CONTROL UNIT HEADLIGHT - FLC MINAlternative for position 2 | - | ||
| 3 | 77 51 1 542 184 | SET: KIT SCREWS | - | |
| 4 | 63 12 1 542 183 | SET: KIT, HEADLIGHT ADJUSTMENT | - | |
| 5 | 61 35 9 446 016 | RUBBER BUFFER | - | |
| 6 | 07 12 9 908 484 | FILLISTER-HEAD SCREW - M8X30 | - | |
| 7 | 63 21 7 173 556 | RUBBER BUFFER | - |
