R1300GS 22 (KA1) | Instruments Dash

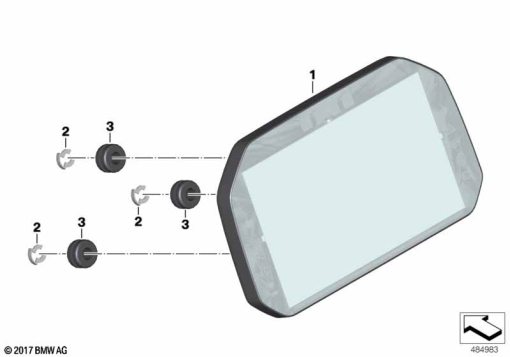

INSTRUMENT CLUSTER / TFT DISPLAY
Diagram #62_0796 | 3 parts
100%
Parts List (3)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62115B523D1 | INSTRUMENT CLUSTER TFT DISPLAY - TFT B 2.0 | 1 | |
| 2 | 62 11 7 921 840 | CIRCLIP | 1 | |
| 3 | 46 63 1 233 200 | RUBBER GROMMET | 1 |
