R1300GS 22 (KA1) | Fuel Preparation

THROTTLE VALVE AND ACTUATOR

Diagram #13_1510 | 4 parts

100%

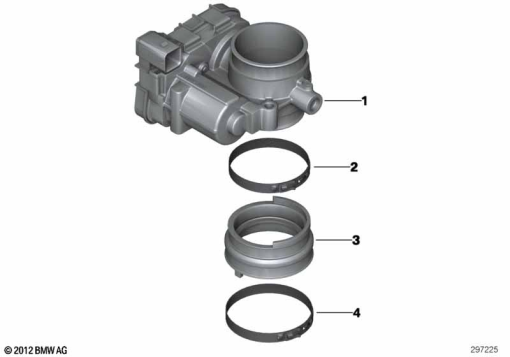

R1300GS 22 (KA1) THROTTLE VALVE AND ACTUATOR exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
13 54 8 568 757
THROTTLE HOUSING ASSY1
2
11 61 8 526 495
MUFFLER CLAMP1
3
11 61 8 520 237
INTAKE MANIFOLD1
4
13 71 7 728 769
MUFFLER CLAMP - Ø 68.01
