R1300GS 22 (KA1) | Fuel Preparation
INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

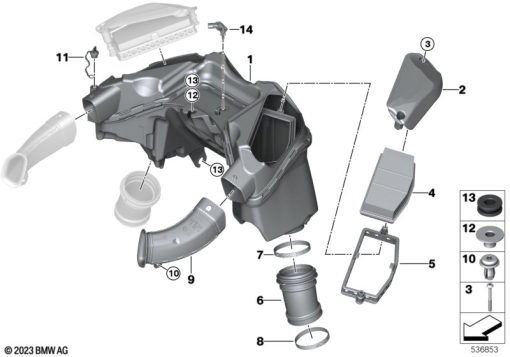

Diagram #13_2763 | 15 parts
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 9 829 383 | INTAKE SILENCER | - | |
| 2 | 13715A72831 | SERVICE LID, LEFT | - | |
13715A72832 | SERVICE LID, RIGHTAlternative for position 2 | - | ||
| 3 | 07145A75942 | CHEESE HEAD SCREW - M5X45-8.8 | - | |
| 4 | 13725A72844 | AIR FILTER INSERT | - | |
| 5 | 13715A72839 | FRAME | - | |
| 7 | 13 71 7 672 313 | MUFFLER CLAMP - D=72MM | - | |
| 8 | 13 71 7 728 769 | MUFFLER CLAMP - Ø 68.0 | - | |
| 9 | 13 71 9 829 385 | INTAKE SNORKEL, LEFT | - | |
13 71 9 829 386 | INTAKE SNORKEL, RIGHTAlternative for position 9 | - | ||
| 10 | 07145A42E91 | EXPANDING RIVET | - | |
| 11 | 13715A72847 | SEAL PLUG | - | |
| 12 | 17 11 8 404 541 | BUSHING | - | |
| 13 | 17 11 8 404 542 | TÜLLE | - | |
| 14 | 13 62 8 519 445 | INTAKE AIR TEMPERATURE SENSOR | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
