R1300GS 22 (KA1) | Front Suspension
UPPER FORK CROSS BRACE

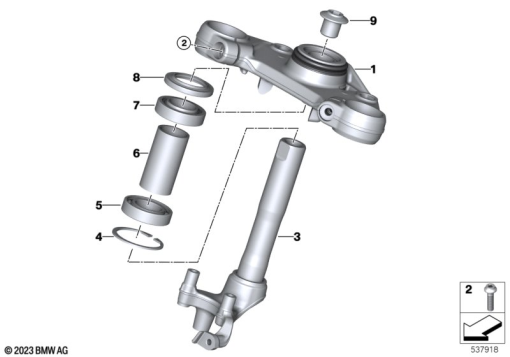

Diagram #31_2603 | 9 parts | 2 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 924 206 | FORK BRIDGE UPPER | 1 | |
| 2 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | 1 | |
| 3 | 31 42 7 922 838 | CONTROL PIPE | 1 | |
| 4 | 07 11 9 907 498 | CIRCLIP - 55X2 | 1 | |
| 5 | 31425A68259 | GROOVED BALL BEARING | 1 | |
| 6 | 31 42 7 922 840 | SPACER BUSHING | 1 | |
| 7 | 31 42 7 923 062 | BEARING | 1 | |
| 8 | 31 42 7 923 053 | COVER | 1 | |
| 9 | 36 31 8 561 528 | SCREW - M20X1,5 | 1 |
