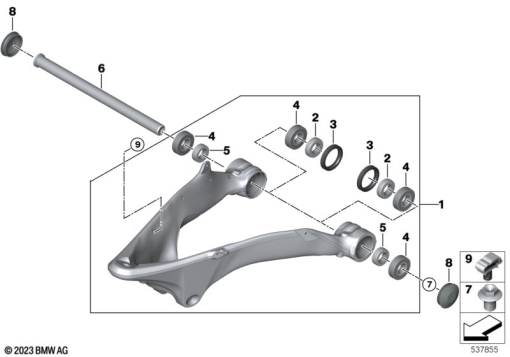

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31 42 7 923 055 | TRAILING LINK | - | |
31 42 7 923 305 | TRAILING LINKAlternative for position 1 | - | ||
| 2 | 31 42 8 545 044 | SPACER BUSHING, RIGHT | - | |
| 3 | 07 11 9 908 476 | SHAFT SEAL - 35X47X7 | - | |
| 4 | 31 42 7 915 301 | GROOVED BALL BEARING | - | |
| 5 | 31 42 8 545 026 | SPACER BUSH | - | |
| 6 | 31 42 7 922 839 | AXLE | - | |
| 7 | 36 31 7 705 315 | HEX BOLT - M14X1.5 | - | |
| 8 | 31 42 7 105 822 | BEARING COVER | - | |
| 9 | 34 52 1 164 653 | TUBING SUPPORT | - |
