R1300GS 22 (KA1) | Frame, Fairing, Cases
TRIM PANEL BRACKET

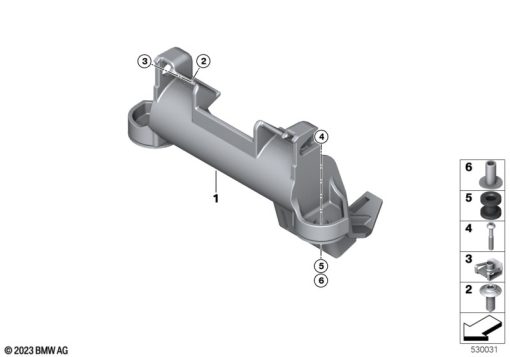

Diagram #46_2581 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 541 517 | TRIM PANEL BRACKET | 1 | |
| 2 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 4 | 07 12 9 907 377 | FILLISTER-HEAD SCREW - M8X50-8.8-ZNNIV | 1 | |
| 5 | 16 11 2 309 211 | RUBBER MOUNTING | 1 | |
| 6 | 16 11 7 921 849 | BUSHING | 1 |
