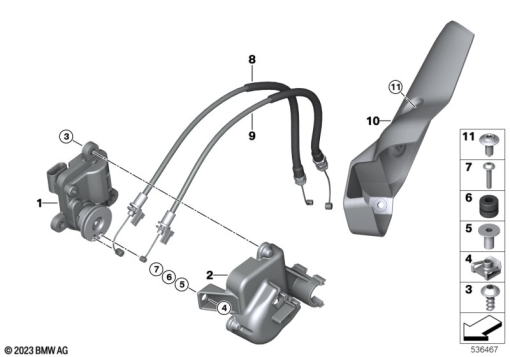

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18515A65989 | SERVO UNIT, EXHAUST FLAP | - | |
| 2 | 18 51 1 541 105 | BRACKET EXHAUST FLAP CONTROLLER | - | |
| 3 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - | |
| 4 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 5 | 13 61 7 714 270 | SOCKET WITH SHOULDER - DI=5,5 | - | |
| 6 | 62 11 7 663 112 | RUBBER GROMMET | - | |
| 7 | 71 60 7 680 822 | BINDING HEAD SCREW - M5X25MK (ISA) | - | |
| 8 | 18 51 1 541 107 | BOWDEN CABLE OPENER | - | |
| 9 | 18 51 1 541 106 | BOWDEN CABLE CLOSER | - | |
| 10 | 18 51 9 445 098 | HEAT SHIELD EXHAUST MANIFOLD | - | |
| 11 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - |
