R1300GS 22 (KA1) | Engine
SCREW CONNECTION, ENGINE HOUSING

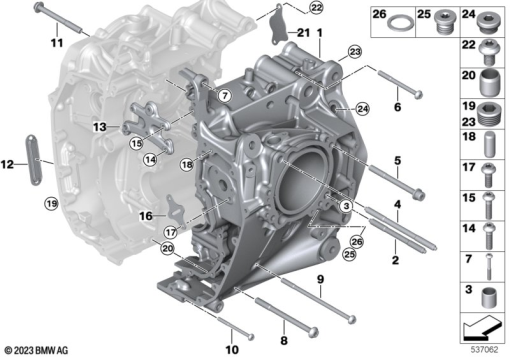

Diagram #11_9838 | 26 parts | 1 available in shop
100%
Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 7 105 518 | CRANKCASE, BLACK | 1 | |
| 2 | 07 14 7 105 340 | STUD BOLT - M10X130 | 1 | |
| 3 | 11 12 1 726 241 | DOWEL - D=12,5MM | 1 | |
| 4 | 07 14 7 105 349 | STUD BOLT - M10X165 | 1 | |
| 5 | 07 14 1 027 815 | SCREW - M10X117-T55 | 1 | |
| 6 | 07 12 9 909 901 | FILLISTER-HEAD SCREW - M8X90-10.9-ZNNI | 1 | |
| 7 | 07 12 9 907 532 | FILLISTER-HEAD SCREW - M6X50-8.8-ZNNIV | 1 | |
| 8 | 07 12 9 909 823 | CHEESE HEAD SCREW - M10X130-10.9 | 1 | |
| 9 | 07 12 9 909 822 | CHEESE HEAD SCREW - M8X160-10.9 | 1 | |
| 10 | 07 12 9 907 394 | FILLISTER-HEAD SCREW - M6X75-8.8 | 1 | |
| 11 | 07 12 9 908 724 | FILLISTER-HEAD SCREW - M10X95-10.9 | 1 | |
| 12 | 11 14 7 105 362 | INSPECTION GLASS | 1 | |
| 13 | 11 11 7 914 195 | BEARING SEAT | 1 | |
| 14 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | 1 | |
| 15 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 16 | 11 11 7 923 562 | SEALING CAP | 1 | |
| 17 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 18 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | 1 | |
| 19 | 11 12 7 539 543 | SCREW PLUG - M10X1-8.8-ZNNIV | 1 | |
| 20 | 07 14 1 642 512 | DOWEL - 12,5X10,5X13,5 | 1 | |
| 21 | 11 11 7 923 592 | SEALING CAP | 1 | |
| 22 | 34 21 9 908 485 | FILLISTER-HEAD SCREW - M6X10-8.8-MKL- | 1 | |
| 23 | 11 21 7 729 500 | SCREW PLUG - M12X1.5X10 | 1 | |
| 24 | 11 11 7 533 423 | SCREW PLUG WITH GASKET RING - M16X1.5-AL | 1 | |
| 25 | 11 12 8 551 865 | SCREW PLUG - M10X1 AL | 1 | |
| 26 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 |
